42.00
ADD TO CART

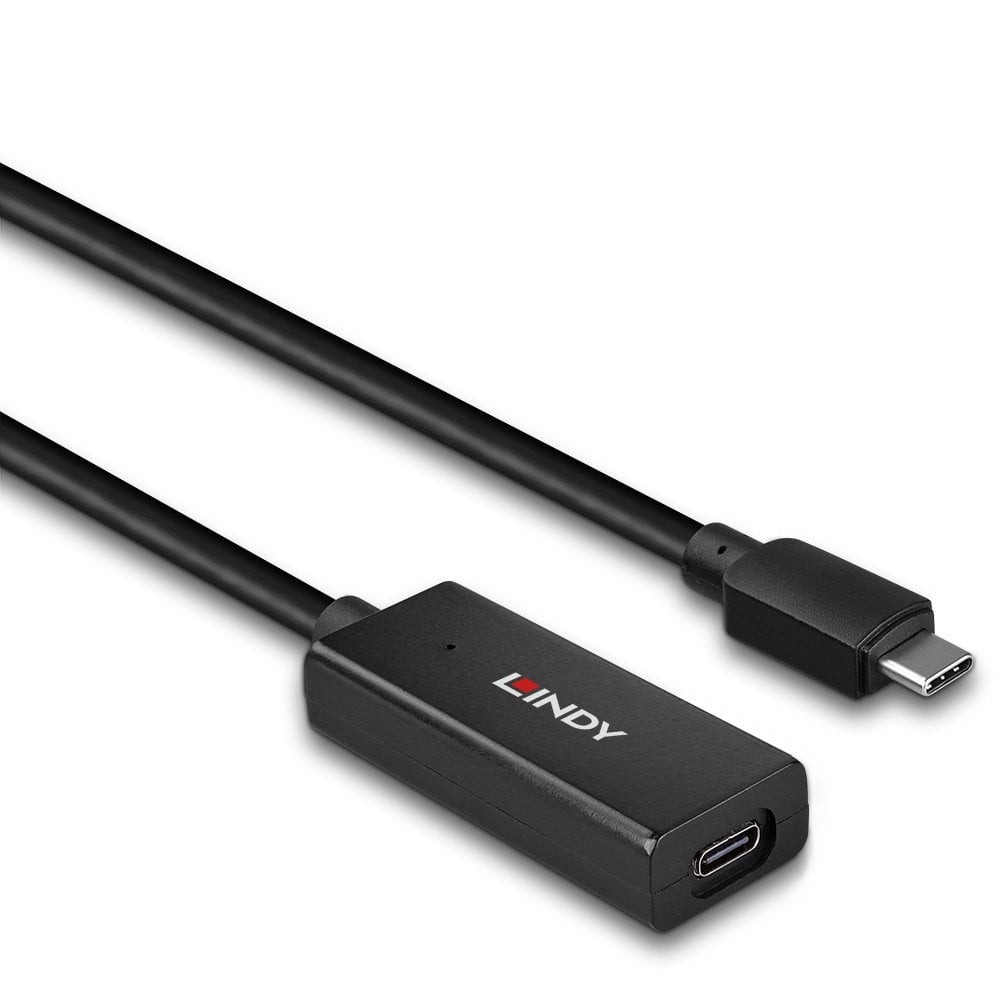

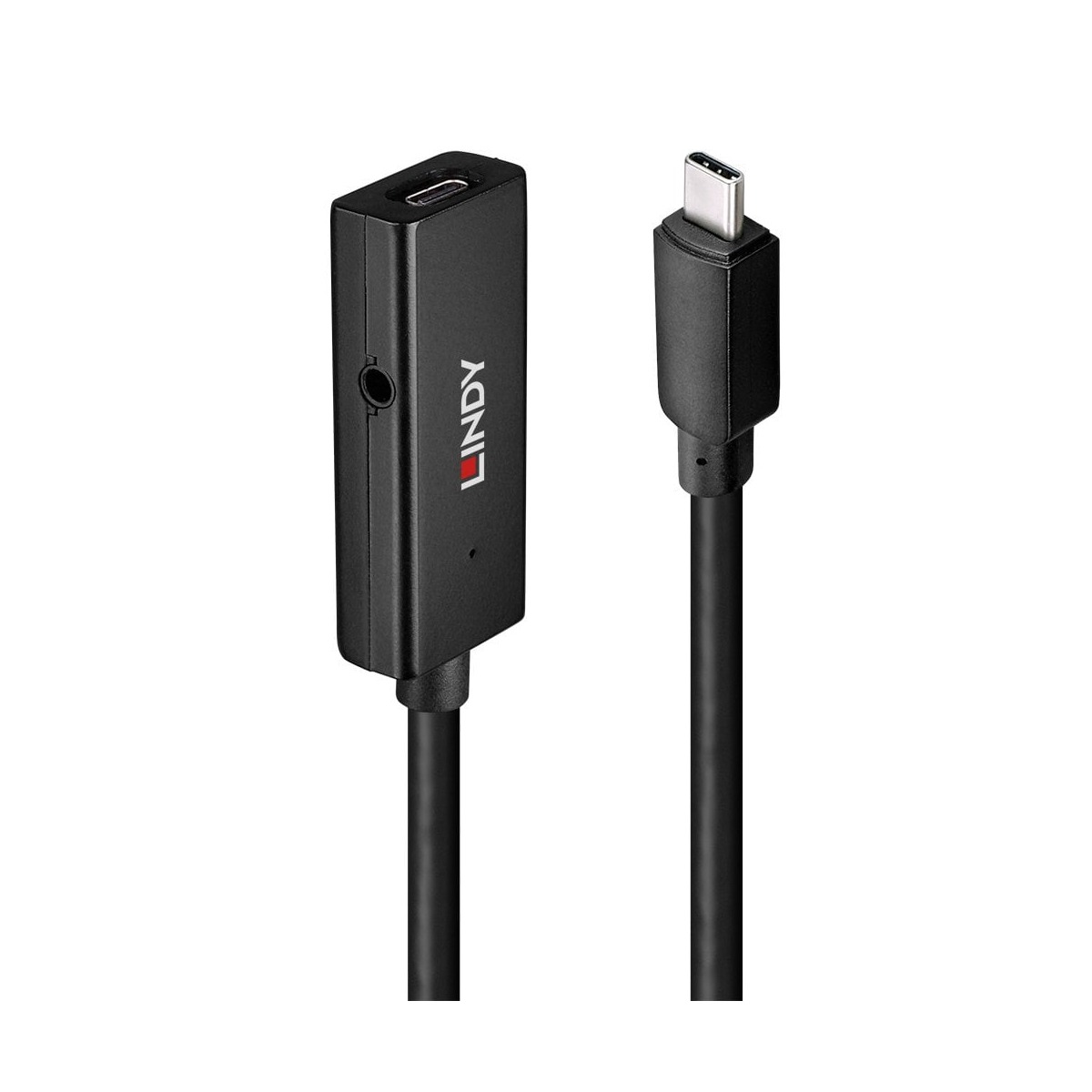

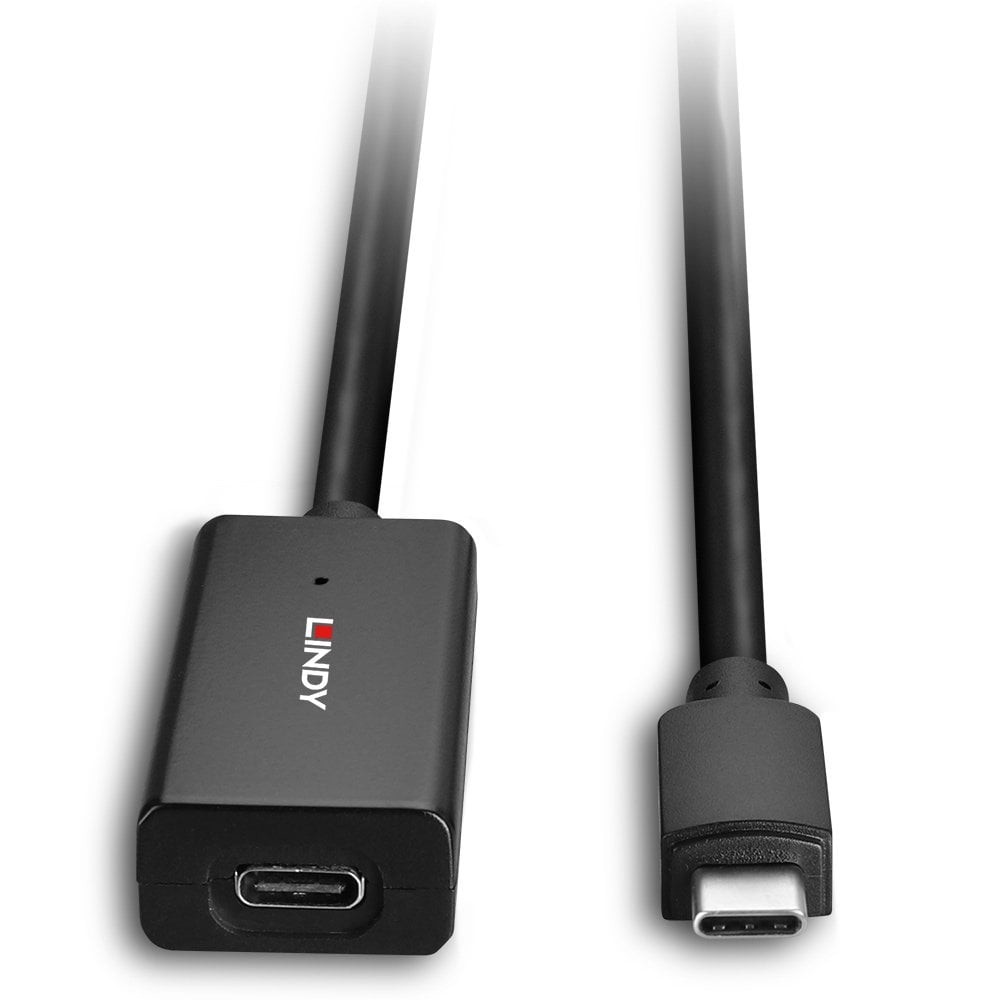

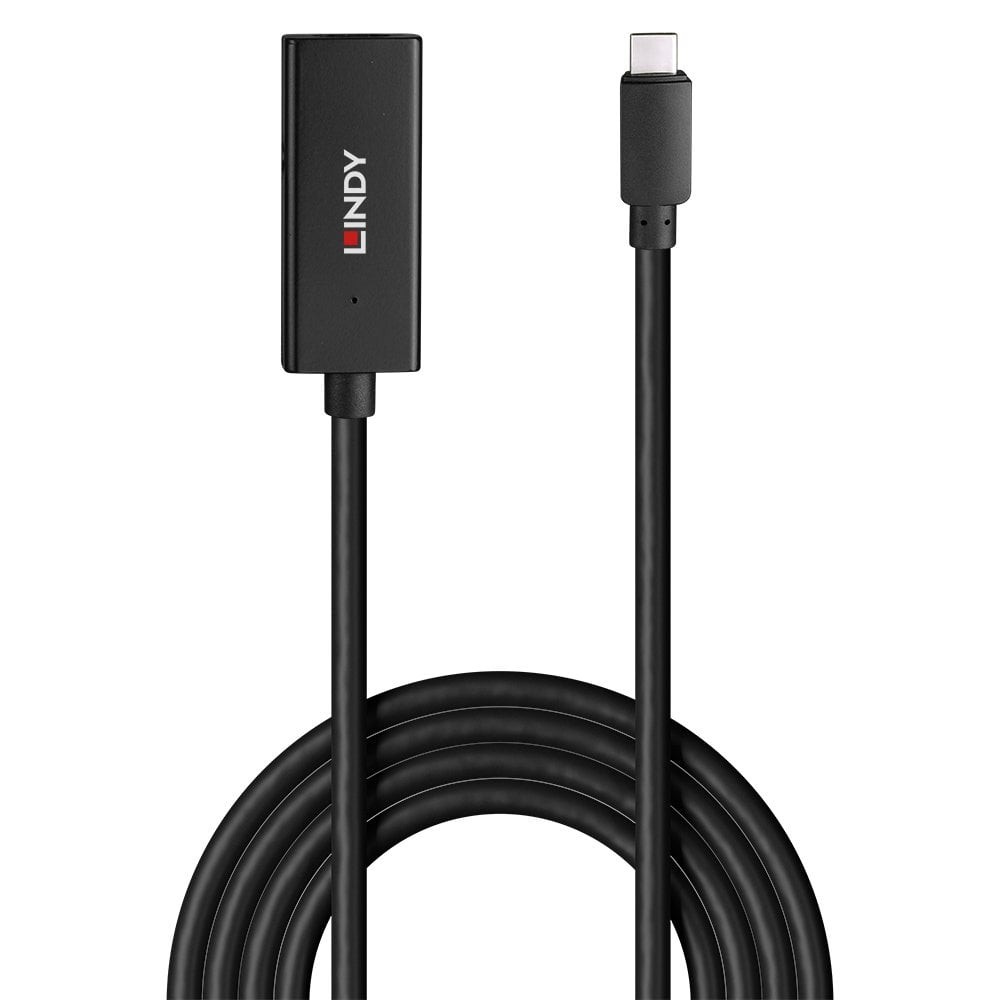

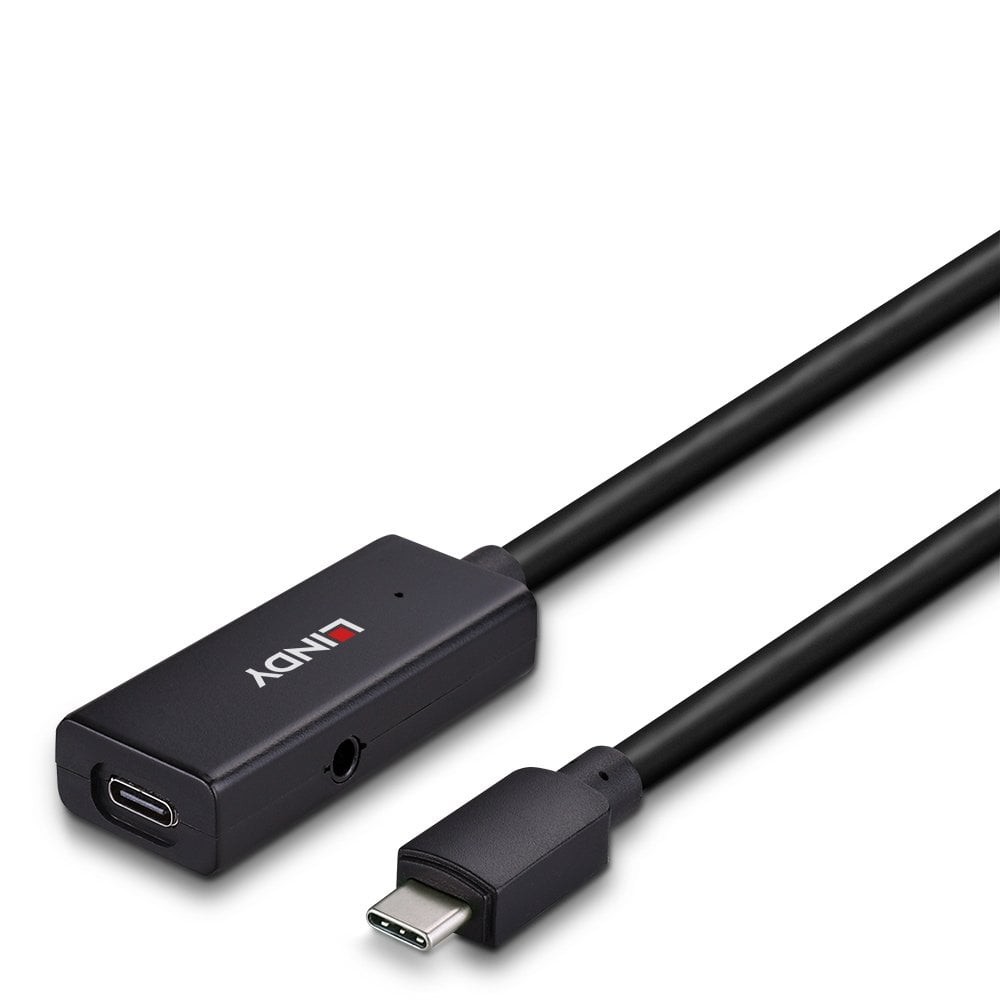

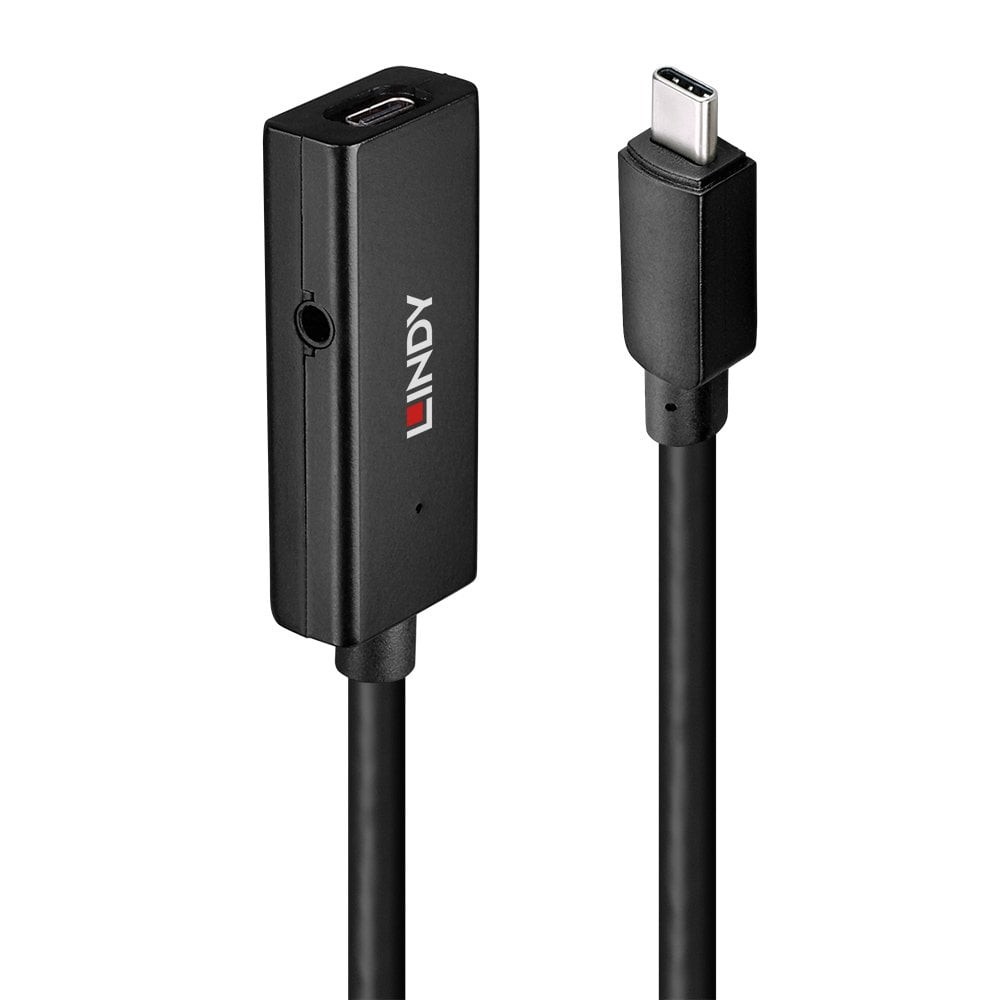

5m USB 3.2 Gen 1 C/C Active Extension

The Lindy USB 3.2 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps. With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs. Compatible with all USB 3.2 Type C and Thunderbolt 3/4 equipped computers (incl. Apple M1), this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

The USB active extension cable also features a DC socket for connecting an external power supply (5V 1A, not included) when using USB peripherals which have higher power requirements.

Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.



Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

  • 5 metre USB 3.2 Active Extension Repeater Lead
  • Supports transfer rates up to 5Gbps
  • DC socket for connection of an optional external power supply
  • For even greater distances simply connect 2 cables in series
  • 2 year warranty
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • Ports quantity: 2
  • 5000 Mbit/s
  • Black Acrylonitrile butadiene styrene (ABS)
Ports & interfaces
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Ports quantity 2
USB Type-C DisplayPort Alternate Mode No
Card reader integrated No
DC-in jack Yes
Features
Data transfer rate 5000 Mbit/s
Product colour Black
Housing material Acrylonitrile butadiene styrene (ABS)
LED indicators No
Cable type Round cable
AWG wire size 22/28
Cable jacket material Polyvinyl chloride (PVC)
Cable length 5 m
Cable diameter 5.5 mm
Conductor material Tinned copper
Connector contacts plating Nickel
Plug and Play Yes
Bend radius (min) 3.6 cm
Transmission medium Twisted pair
Power
Power supply type DC
Weight & dimensions
Weight 198 g
Connector 1 dimensions (WxDxH) 30.2 x 12.4 x 8 mm
Connector 2 dimensions (WxDxH) 62 x 23.1 x 12.3 mm
Packaging data
Quantity per pack 1 pc(s)
Package width 236 mm
Package depth 255 mm
Package weight 253 g
Package type Polybag
Packaging content
Manual Yes
Operational conditions
Minimum operating temperature 0 °C
Maximum operating temperature 40 °C
Operating temperature (T-T) 0 - 40 °C
Operating temperature (T-T) 32 - 104 °F
Storage temperature (T-T) -10 - 60 °C
Technical details
Compliance certificates CE, REACH, RoHS
